Sussman ES160 Electric Steam Boiler – 158 kW, 480V 3-Phase

You are not charged until your order is confirmed. Freight covers the lower 48 within 500 miles of Indianapolis.

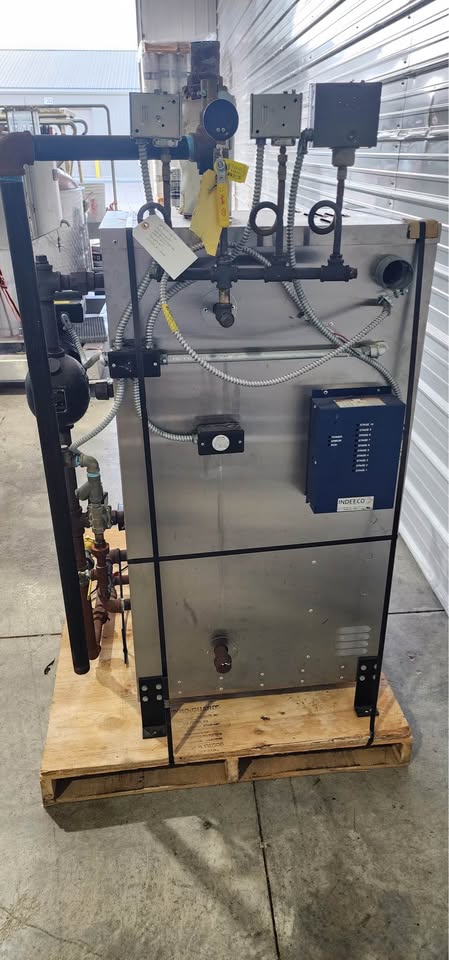

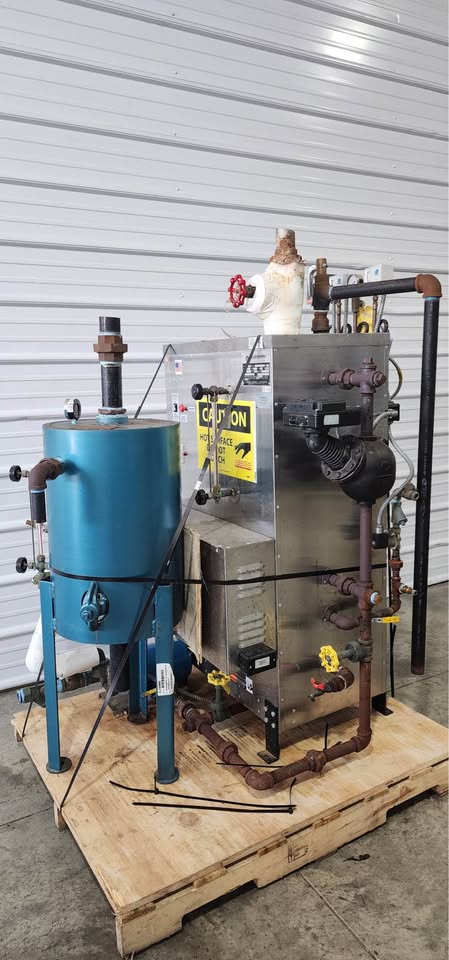

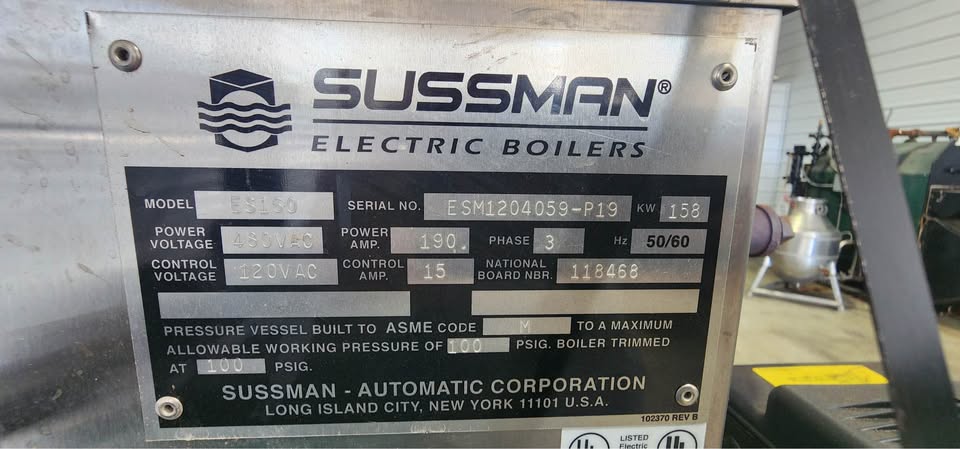

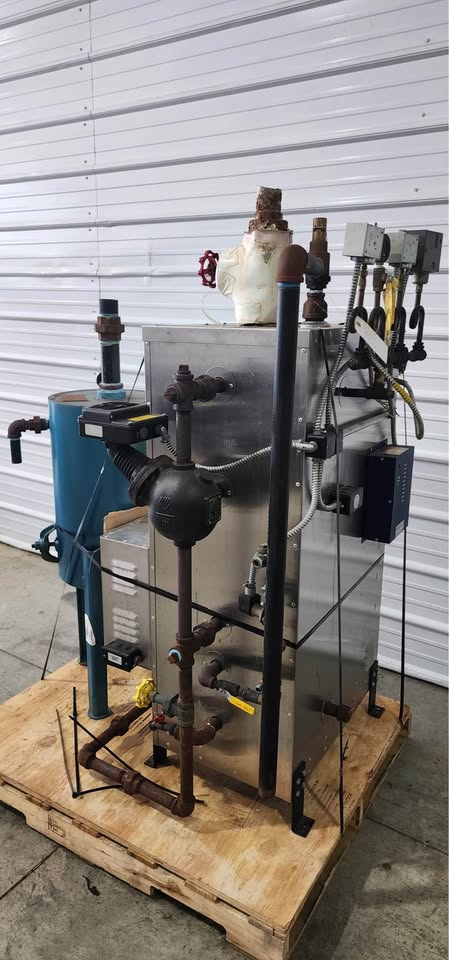

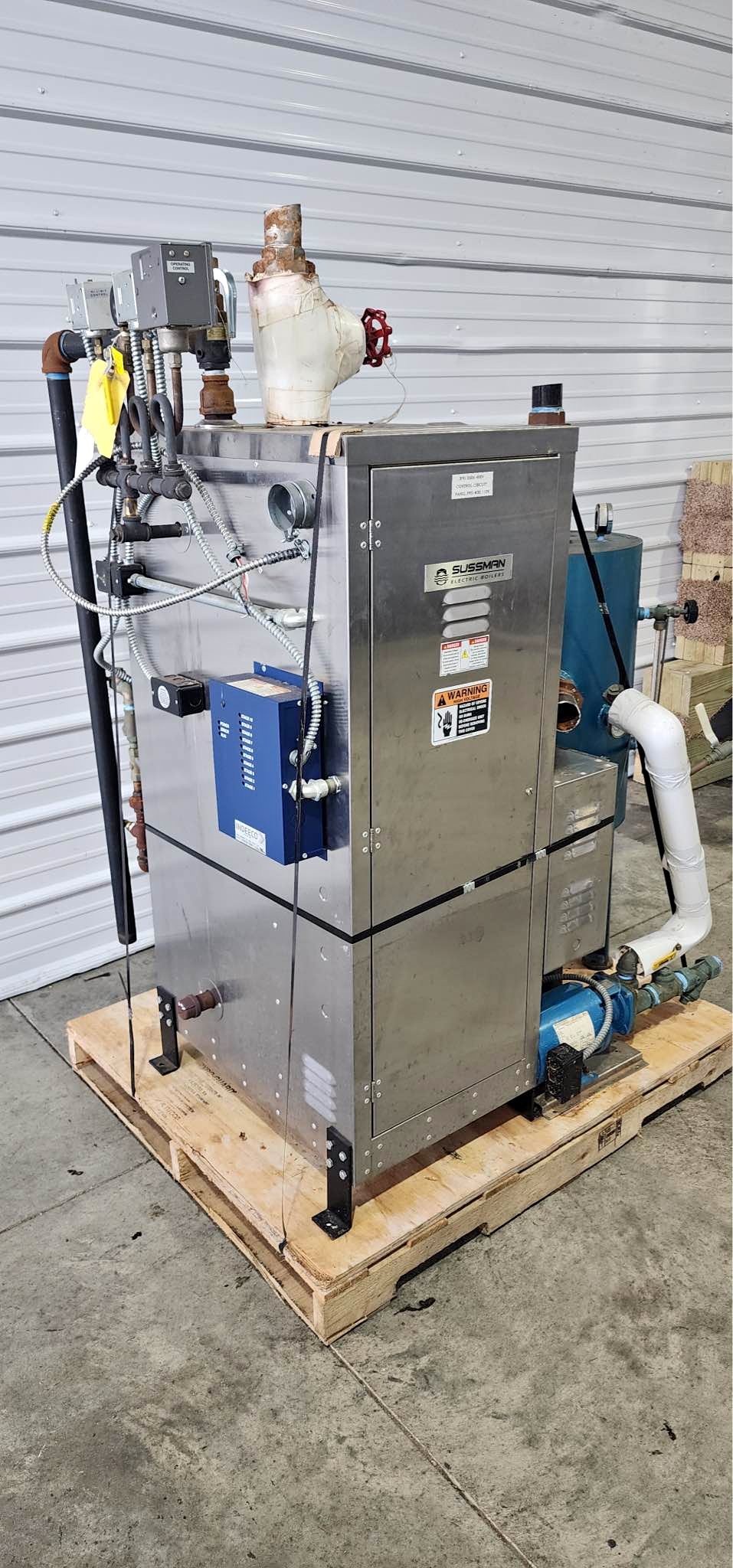

In-stock Sussman Electric Boiler, Model ES160 - equivalent to a ~16hp boiler (suitable for 7-10bbl brewhouses), built to ASME code and rated for 158 kW of power output. Operates on 480V 3-phase electrical with 120V control voltage, drawing approximately 190 amps (15A control circuit). The unit’s pressure vessel is certified for a maximum working pressure of 100 PSIG, ideal for brewery, distillery, and process heating applications. Specifications: • Model: ES160 • Power: 158 kW / 480V / 3-Phase / 190 Amps • Control Voltage: 120V / 15A • Max Working Pressure: 100 PSIG
