Grain Grist Case - Tank for supplying milled grain to mash tun & auger

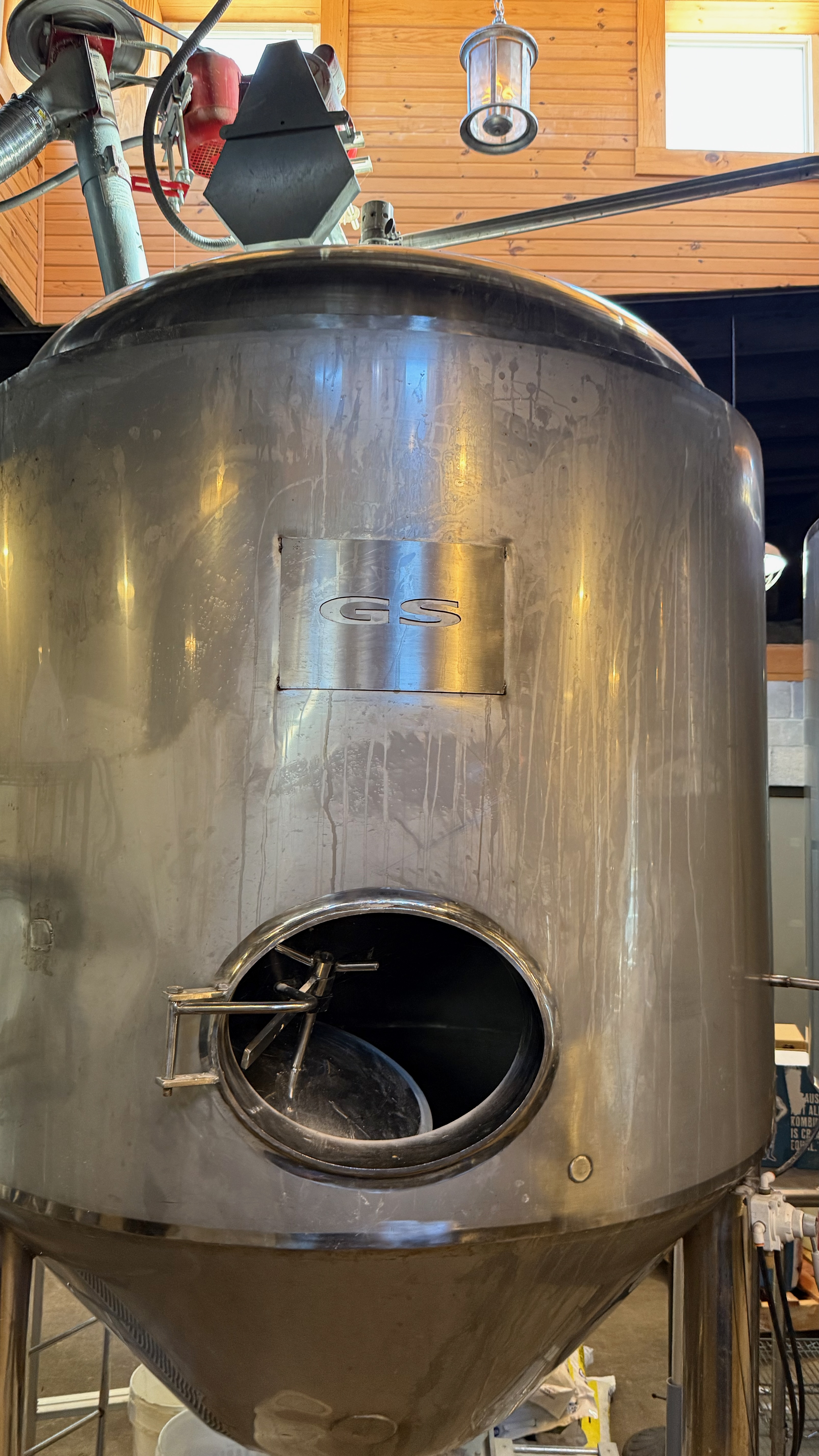

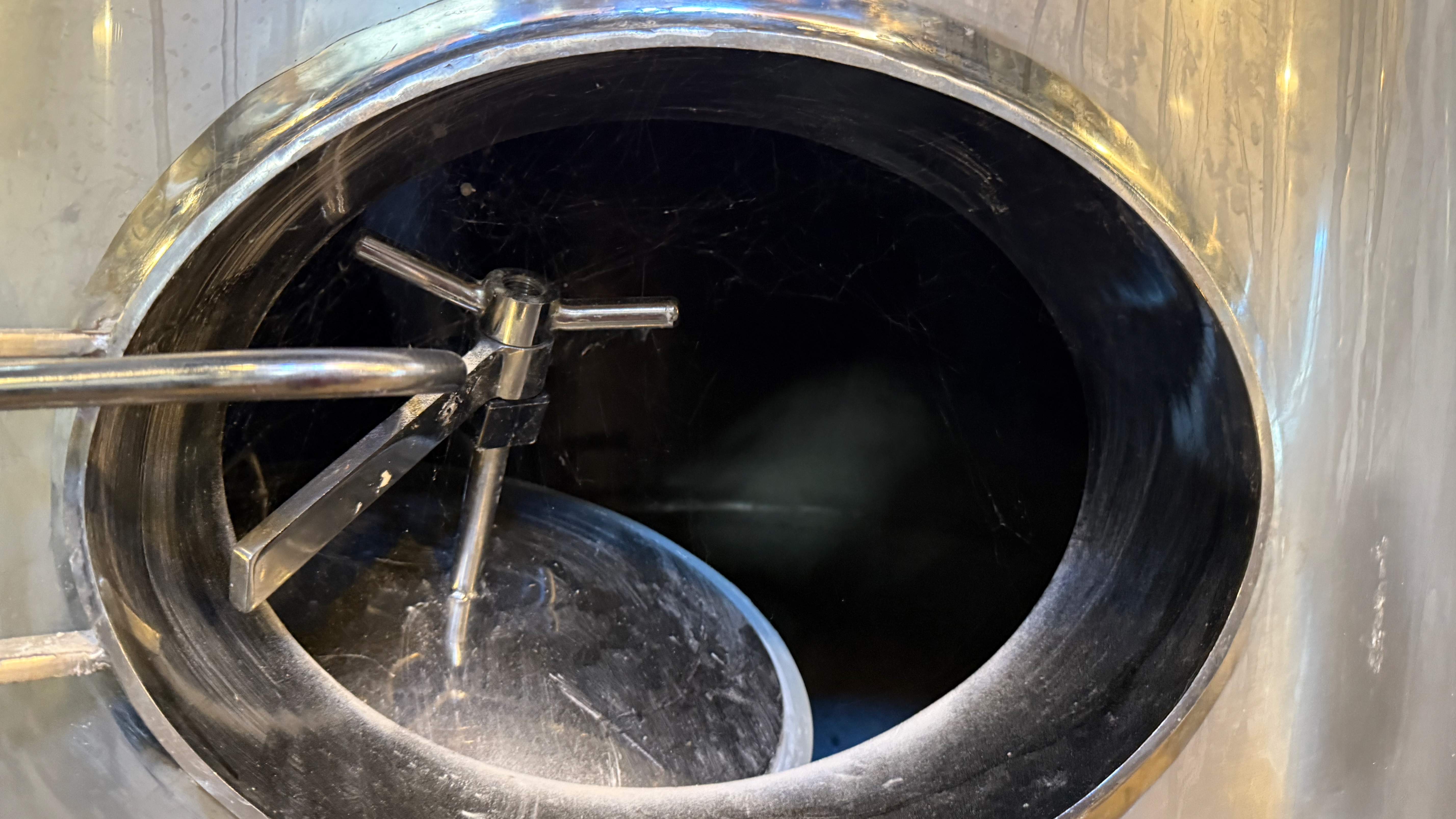

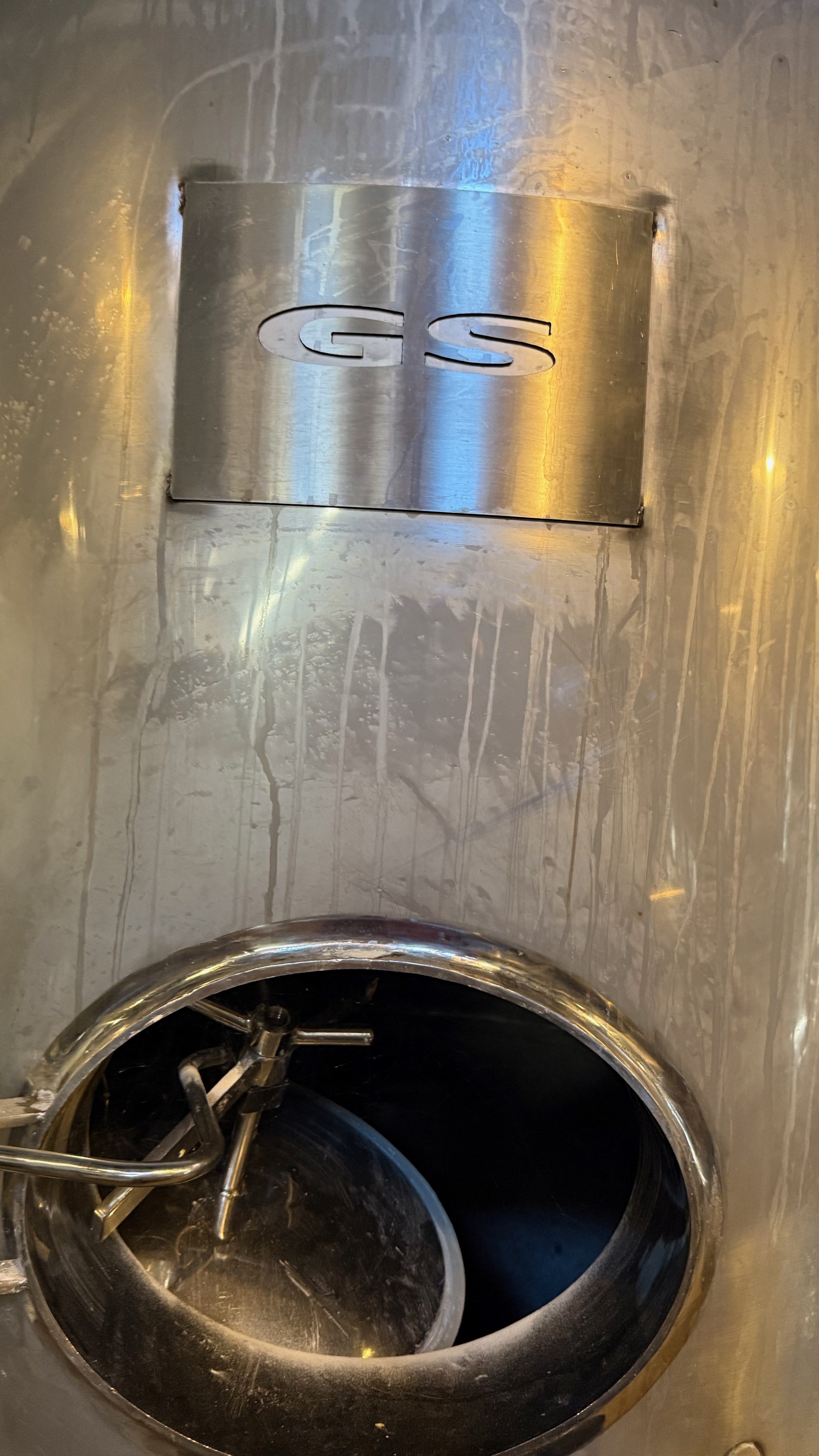

Grain Storage Vessel (GS) General Description * Function: Grain storage / pre-mash hopper positioned directly behind the brewhouse, receiving milled grain from an auger feed line connected to the grist mill. * Construction: Cylindrical, vertical, stainless-steel vessel with dished top and conical bottom on tubular legs. * Dimensions: 9.5 ft H × 5 ft W × 5 ft D (approx.). * Capacity: serves a 20 BBL capacity brewhouse operation (nominal, based on brewhouse scale and vessel labeling). Features * Label: Embossed GS (“Grain Storage”) plate on front face. * Access: Front manway with tri-clamp closure for cleaning and inspection. * Cone Bottom: Sanitary drain/auger discharge port at base leading to flexible hose or auger inlet. * Top Feed: Hard-piped auger down-tube entering at top center, supported by overhead framework. * Venting: Upper vent/stack connection for pressure equalization during fill and discharge. * Finish: Brushed stainless exterior; welded sanitary seams. * Mounting: Four welded stainless legs with floor mounts. Location & Integration * Installed in-line with fermentation row immediately behind the brewhouse deck. * Interfaces with brewhouse milling system via auger and with mash tun through grain-in plumbing. * Positioned for gravity-assisted or pneumatic feed into brewhouse operations.

Condition

used
